   2-ROLL MILLเครื่องรีดยาง 2 ลูกกลิ้ง
_______________________________________________________________

   YFTR 2-ROLL MILL MACHINE


   YFCR 2-ROLL MILL MACHINE

   YFTR, YFCR  STANDARD COOPERATE EQUIPMENT :



1. ROLL BEARING   2. ROLL COOLING IS HEMETIC   PRESSURE   3. EMERGENCY MAGNETIC BRAKE



YFTR
Bearing Lubrication
  YFCR
Bearing Lubrication uses Grease Oil Pump by Hand.


ITEM
SIZE
MAIN MOTOR
MIXING CAPACITY
NET WEIGHT
LENGTH (L)
mm
WIDTH (W)
mm
HEIGHT (H)
mm
YFTR-14
14"Ø x 36"L
40HP
25
6200
4034
1600
1735
YFTR-16
16"Ø x 42"L
60HP
40
8700
4598
1750
1770
YFTR-18
18"Ø x 48"L
100HP
60
12500
5075
1900
1755
YFTR-20
20"Ø x 54"L
125HP
80
18000
5680
2000
1820
YFTR-22
22"Ø x 60"L
150HP
100
21000
6215
2100
1945
YFTR-24
24"Ø x 72"L
250HP
125
28000
6630
2350
2100
YFTR-26
26"Ø x 84"L
350HP
150
32500
7060
2500
2150
YFTR-28
28"Ø x 90"L
400HP
200
38000
7700
2650
2200


ITEM
SIZE
MAIN MOTOR
MIXING CAPACITY
NET WEIGHT
LENGTH (L)
mm
WIDTH (W)
mm
HEIGHT (H)
mm
YFTR-6
Ø160" x 380"L
7.5HP
8
1100
1120
920
1295
YFTR-10
Ø250" x 620"L
15HP
12
3800
2350
1200
1300
YFTR-12
Ø300" x 700"L
30HP
15
4600
3250
1420
1580
YFTR-14
Ø360" x 900"L
40HP
20
5500
3920
1720
1735
YFTR-16
Ø400" x 1000"L
60HP
35
10000
4320
1890
1800
YFTR-18
Ø450" x 1200"L
75HP
55
13000
4800
2030
1910
YFTR-22
Ø550" x 1530"L
50HP
100
20000
6040
2100
1945
YFTR-24
Ø610" x 1830"L
250HP
125
45000
7520
3500
2200

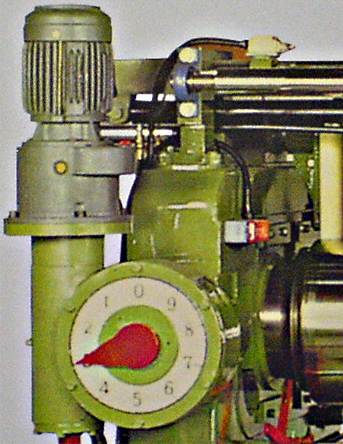

  « 6. ELECTRIC ROLL GAP ADJUSTER DIGIT DISPLAY

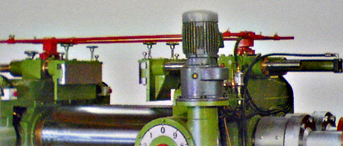

  7. DIAPHRAGM ON BOTH SIDES HOLDING
      BY CYLINDERS

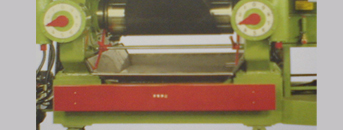

  8. EMERGENCY BRAKE EQUIPMENT FOOT
      PRESS 2 POINT

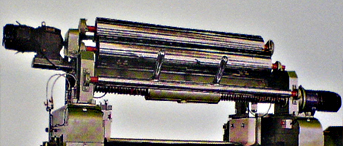

  9. AUTOMATIC BLENDER
  Non-labor intensive when mixing materials
  Time saving and durable

     NEW-TYPE        OLD-TYPE
