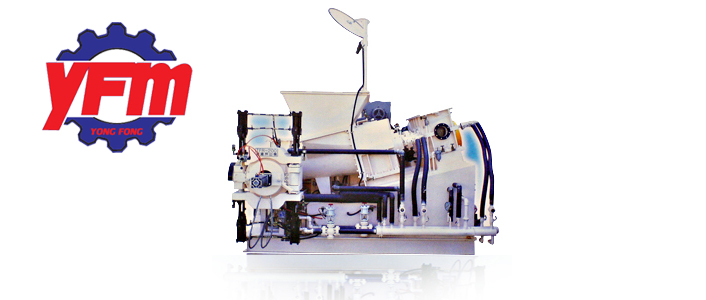

 Taper Twin Screw Extrusion Strainig Sheet Forming Machine
_____________________________________________________________________ |
 |
| |
TFR Series
Mixture Containing impurity or uneven mixing often occurs during the blinding process of plastic material.
thus lead to the subsequent poor productin of defective items. Our TFR series of machines will effctively
improve the quality of plasic material and reduce the manpower for operation. Discharge in sheet of strips
could choose according to the production line requiremnet. This improves the production rate and recycling
rate as the production rate can adjust according to the speed. In the production of high quality plasic
materials or foam products, we have obtained very good result and reputation. | |
| |
TFR Series |
 |
| |
|
|
| ______________________________________________________________________________________________________________________ |
| |
|
|

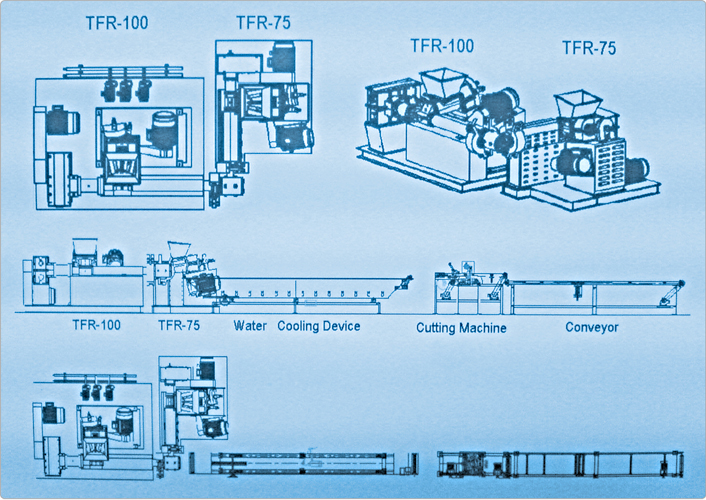

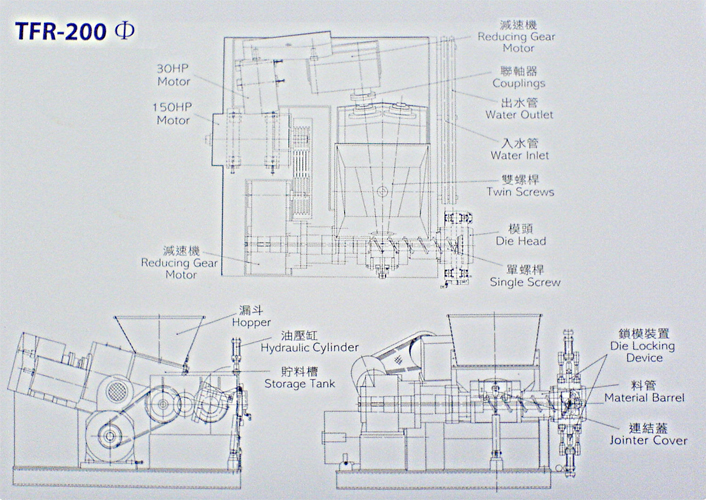

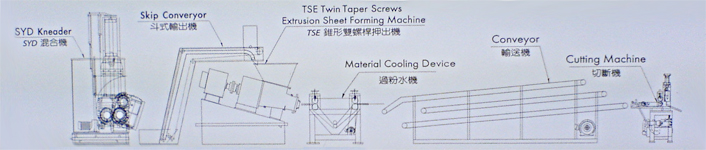

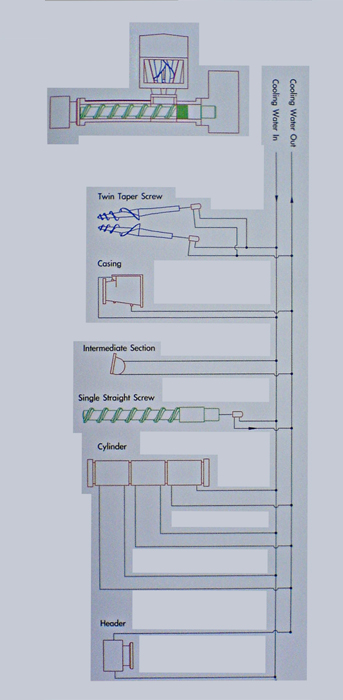

Jacket Layout |
 |
|
 |
|
Die Locking Device |
| |
|
| |

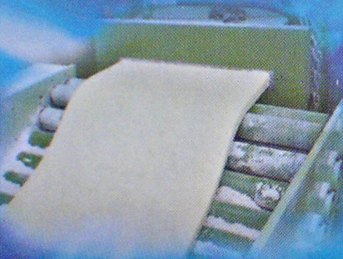

When produce foam products, it is necessary to have
fixed dimension die for extruding flat and smooth sheet.
It saves the cost of T-type die and give high production
effcency. We coperated with those famous foam producer to design suitable die locking device | |
| | |
 |
|

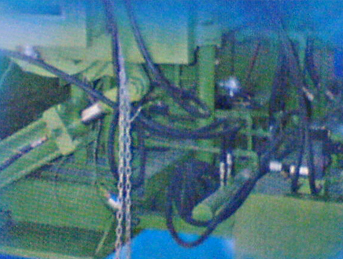

Hydrautic Locking Device |
| |
|
| |
It lets you to quick change the filter or extrusion
dimension without any stop of the production line. | |
| | |
 |
|

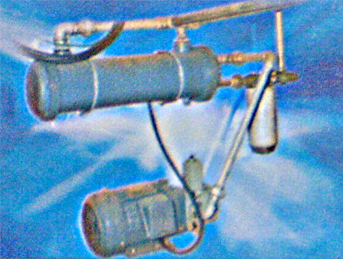

Gearbox coolin system |
| |
|
| |
The lubrication oil of the gearbox goes through the cooling
system by individual piping, passing the filter and delivery to the bearings to provide effciency ludriction result.
Thefilter is designed for easy exchange. The system
keeps the whole gearbox working in low temperature condition, which cold prolong the lifetime of the gearbox and bearings, reducing the cost of maintenance and good for environment. | |
| | |
 |
|

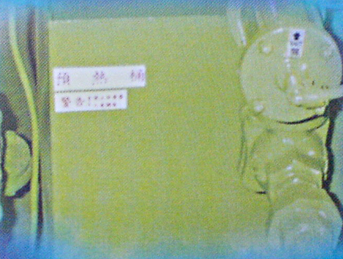

Pre-heat Accessories |
| |
|
| |
It can pre-heat the whole machine before production and reduce the lost of time and materrial consumption during the machine warm up. | |
| | | |
| |
| _____________________________________________________________________________________________________________________ |
| |
|
|
 |
|
|
|
|
|
Model |
TFR-65 |
TFR-65 |
TFR-65 |
TFR-65 |
TFR-65 |
|
Feeding Motor |
5HP |
20HP |
25HP |
30HP |
50HP |
|
Feeder R.P.M. |
2-20 |
2-20 |
2-20 |
2-20 |
2-20 |
|
Extruder Motor |
15HP |
50HP |
100HP |
150HP |
200HP |
|
Extruder R.P.M. |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
|
Single Screw Diameter |
65 |
100 |
150 |
200 |
250 |
|
Extruding Capacity/Hour |
100L/hr. |
300L/hr. |
600L/hr. |
1200L/hr. |
1600L/hr. |
|
Machine Dimension |
2150*1550*1640 |
2460*2420*1840 |
3850*3700*1950 |
3240*3000*2060 |
3860*3270*2110 |
|
Control Panel |
1 |
1 |
1 |
1 |
1 |
|
|
|
|
|
|
| |
