 DISPERSION MIXERS |
|
|
FEATURES : |
|
|
|

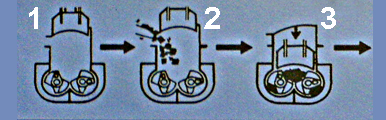

1. Unique creation of wing-root water cooling for mixing at
low temperature which avoid heating problems during
continuous mixing.
2. Special 3-wing design to enforce cooling inside wing with
powerful mixing to get the best results and save time.
3. Adopts special treated steel, with strong wear-proof
quality. |
|
|
 |
 | |
| |
|
|
|
|
| |
|
|
|
Item / model name |
YFYK-3 |
YFYK-20 |
YFYK-35 |
YFYK-55 |
YFYK-75 |
YFYK-110 |
YFYK-150 |
|
Mixing Capacity (L) |
3 |
20 |
35 |
55 |
75 |
110 |
150 |
|
Main Motor horse power |
7.5 |
60 |
60 |
100 |
150 |
200 |
250/300 |
|
Brake Motor |
Used oil hydraulic cylinder |
5 |
7.5 |
10 |
15 |
|
Air compressor |
2 |
3 |
5 |
5 |
7-1/2 |
7-1/2 |
7-1/2 |
|
Dust Collector horse power |
0.25 |
3 |
3 |
3 |
5 |
5 |
7.5 |
|

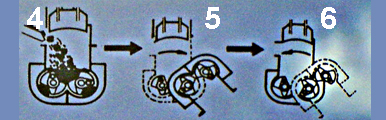

Tiiting Angle |
120° |
120° |
140° |
140° |
140° |
140° |
140° |
|
Material Feed |
Front |
Front |
Rear-Front |
Rear-Front |
Rear-Front |
Rear-Front |
Rer Front |
|
Temperature Control |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
|
Pressure of cooling water (MPa) |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
|
Water consumption (m3/h) |
0.2~0.4 |
3~5 |
5~7 |
7~10 |
10~13 |
13~15 |
15~20 |
|
Machine Weight (kg) |
1700 |
5500 |
6100 |
8300 |
10600 |
13500 |
16000 |
|
Installation |
Long |
1250 |
1860 |
3000 |
3400 |
3900 |
4700 |
5000 |
|
Demension (mm) |
Wildth |
890 |
2100 |
2100 |
2400 |
2400 |
3000 |
3000 |
|
Space for install |
High |
2000 |
2740 |
3000 |
3300 |
3400 |
3900 |
4000 |
|
|
|
|
|
|
|
|
| |
| |
|
|
| _____________________________________________________________________________________________________________________ |
| |
|
|

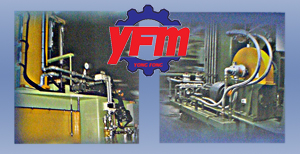

STANDARE COOPERATE EQUIPMENT |
|
|
AIR PIPING |
|
|
|
COOLING WATER PIPING
COOLING USED
ROTARY JOINTS HERMETIC PRESSURE |
| | |
|
|
|
| |
|
|
| _____________________________________________________________________________________________________________________ |
| |
|
|

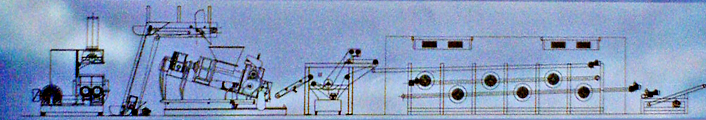

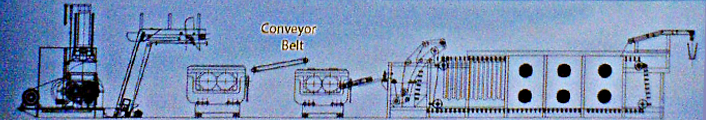

PRODUCTION PROCESSING CHART |
|
|
| |
|
|
| 75 LKNEADER RUBBER SHEET PRODUCTION LINE |
|
|
|
|
| |
|
|
|
Kneader
75 L |
Bucket
Conveyor |
TSP-110 Twin taper
screw extrusion |
Batch off Machine Air condition room |
Rotary cutter
Machine | |
| |
|
|
|
110 L KNEADER RUBBER SHEET PRODUCTION LINE |
 |
| |
|
|
|
Kneader
110 L |
Bucket
Conveyor |
22" -Dia.
2-Roll Mill |
18" -Dia
2-Roll Mill |
Straight hang styleBatch off Machine | |
| |
|
|
| _____________________________________________________________________________________________________________________ |
| |
|
|

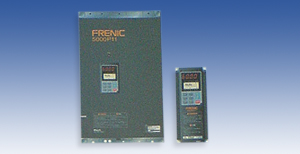

OPTIONAL |
|
|
| |
|
|
 |
|
|
| |
|
|
|

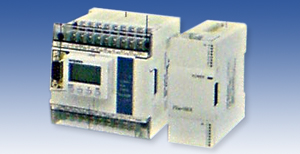

1. PLC CONTROL |
|
|
| |
|
|
 |
|
|
| |
|
|
|

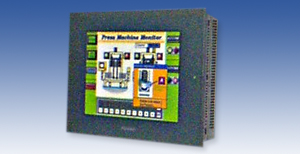

3. TOUCH SCREEN |
|
|
| |
|
|
 |
|
|
| |
|
|
|

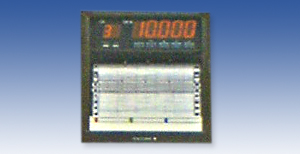

5. RECORDER YOKOGAWA - JAPAN |
|
|
6. INNER PRESSURE COVER AIR
CYLINDER SAFETY PIN |
| |
| |
|
|
 |
|

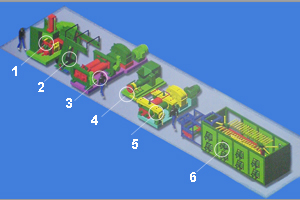

FLOW |
|
| |
|
1. Kneader 110 L
2 . Bucket Conveyor
3 . 22" Dia. 2-Roll Mill
4 . Extruder 8" Straining Machine
5 . 18" Dia 2-Roll Mill
6 . Ellipse Hang style Batch - off Machine | |
| |
|
|
