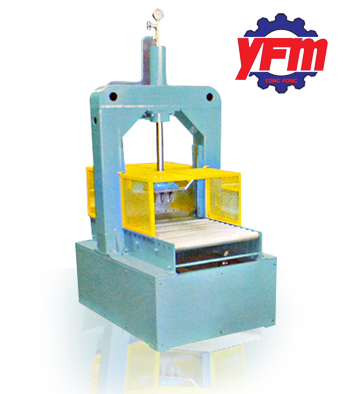

CUTTING MACHINE
________________________________________________________________

YFYRBS -550 YFYRBS -750

MODEL	YFYRBS -550	YFYRBS -750	YFYRBN -750
CUTTING KIND	SYNTHETIC RUBBER	SYNTHETIC RUBBER	NATURAL RUBBER,SYNTHETIC RUBBER
CUTTING DIMENSION	W H	W H	W H
CUTTING DIMENSION	550 * 350 mm	750 * 350 mm	750 * 700 mm
MAX.PRESSURE OF PUMP	70 kg/cm	70 kg/cm	70 kg/cm
HORSE POWER OF PUMP	3 HP	3 HP	3 HP
CUTTING-OFF FORCE	5 TON	5 TON	5 TON
OUTLINE DIMENSION	L W H	L W H	L W H
OUTLINE DIMENSION	1197 * 950 * 1930 mm	1197 * 1150 * 1930 mm	1197 * 1150 * 2030 mm
NET WEINGT/GROSS WEIGHT	850 kg	950 kg	1000 kg

APPLICATION :

THE RAW RUBBER BALE CUTTER APPLE TO CUT NATURAL RUBBER AND SYNTHETIC RUBBER.

FEATURES :

  1. THE BLADE MAY TYPE TO BE DESIGNED WITH       HYDRAULIC OIL SYSTEM.

  2. THEBLADE MAY AUTOMATICALLY ASCEND TO THE       ORIGINAL POSITION AFTER CUTTING THE RUBBER       MATERIAL TO MAKE OPERATION MORE CONTINUOUSE       AND SMOOTH.

  3. BLADE IS MADE OF SPECIAL ALLOY STEEL IN ORDER       TO REDUCE THE ABRASION.

  4. IT IS EASY IN MA8INTENANCE AND IS MORE SAFETY       IN OPERATION.
