AUTOMATIC VISCOMETER , ROTORLESS CUREMETER

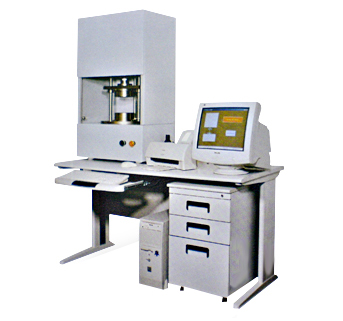

YFCTM - MN-2000 Automatic Viscometer, Rotorless Curemeter

A. General illustration

MN-2000 Type automatic viscometer is used chiefly
fly for testing the viscosity, represented by M value,
of all sorts of unvulcanized natural rubber, sythetic or reclaimed rubber, and their scorching time and
vulcanizing index.

MN-2000 B.TECHNICAL INDEXES
Rotor Speed	2+- 0.02 RPM/mm.
M-Viscosity Measuring Range	0-200.00 M Value
Scorching - Time Counting Range	0-200 min. Resolution 1 Sec.
Vulcanizing - Index Measuring Range	0-200 min. Resolution 1 Sec.
Preheat Time	0-100 min.
M - viscosity Time	0-100 min.
Temperature - Control Range	200°C Romm Temperature
Temperature - Measuring Range	0-200°C Resolution 0.1°C
Power	AC200V 0.6KW
Weight	150 kg.
Dimension(WDH)	6905201080

YFCTM-MDR-2000 B.TECHNICAL INDEXES
Temperature	200°CRoom Temperature
Min.Reading Value of Temp	0.1°C
Rising Time	30°C/min
Torque Measureing Range	0-20 NM
Min.Reading Value of Torque	0.001NM
Oscillation Amplitude	+-0.5° +-1° +-3°
Oscillation Source	100r/min(1.66HZ)
Power Source	200V+-15V
Air Pressure	>0.3Mpa
Quality Standard	ISO 6502
Dimension(WDH)mm.	6905201080
