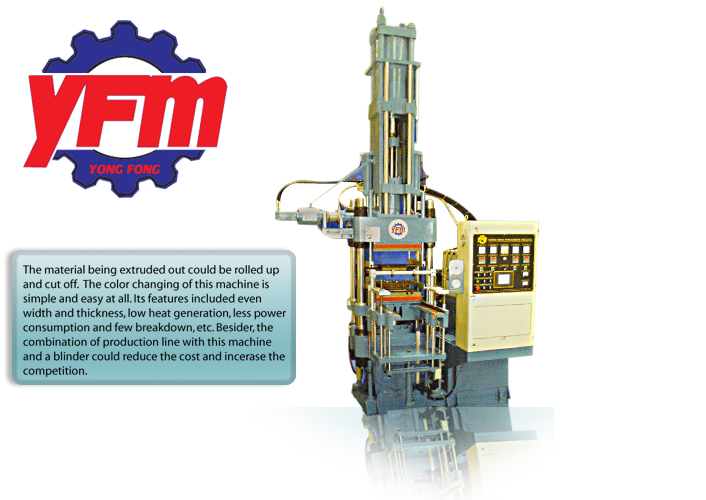

 INJECTION MOLDING MACHINE
_______________________________________________________________________ |
|
|

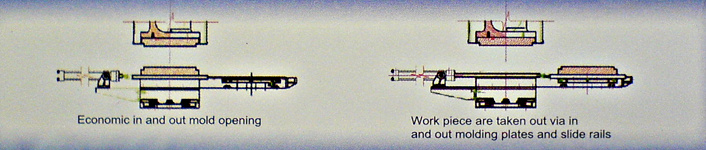

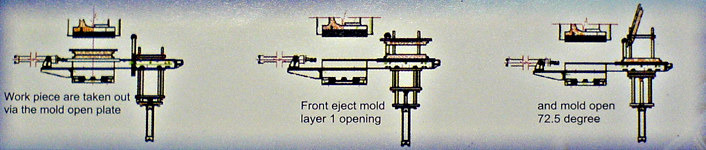

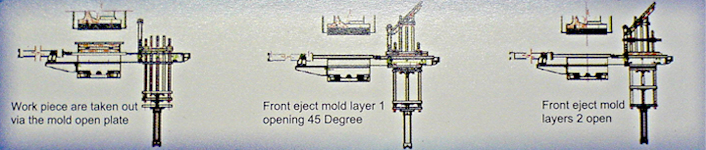

ตัวเปิดแม่แบบ |
|
| |
| |
|
3RT - Type |
 |
| |
|
|
|
|
|
|
| _____________________________________________________________________________________________________ |
| |
|
|
|
2TR -Type |
 |
| |
|
|
| _____________________________________________________________________________________________________ |
| |
|
S - Type |
 |
| |
|
|
| _____________________________________________________________________________________________________ |
| |
ข้อมูลเฉพาะ : |
|
| |
|
แบบเครื่องจักร |
หน่วย |
YFY - VI - 100 |
YFY - VI - 200 |
YFY - VI - 300 |
YFY - VI - 400 |
|
|
|
|
|
|
|
|
Injection Volume |
cc |
500-1000 |
1500-2000 |
2000/3000/4000 |
4000/6000 |
|
Injecction Pressure |
kgf/cm2 |
150-160 |
150-160 |
150-160 |
150-160 |
|
|
|
|
|
|
|
|
Clamping force |
ton |
100 |
200 |
300 |
400 |
|
main Ram Diameter |
m.m. |
ø250 |
ø355 |
ø450 |
ø500 |
|
Main Ram Stroke |
|
300/500 |
300/500 |
300/500 |
300/500 |
|
Day light |
|
350-550 |
350-550 |
400-550 |
400-550 |
|
Heater Plate |
|
460*460 |
510*510 |
600*600 |
700*700 |
|
Heater Capacity |
kw |
10 |
17 |
19 |
20 |
|
Heater Transformer oil |
|
|
Main Motor |
Hp |
10 |
15/20 |
20/25 |
25/30 |
|
Total Capacity |
kw |
25.9 |
26.8 |
32.32 |
32.2 |
|
Tank Capacity |
Liter |
300 |
400 |
500 |
500 |
|
|
|
|
|
|
| |
|
|
To ensure technological excellence, specifications are subject to cange without prior notice. |
